Description

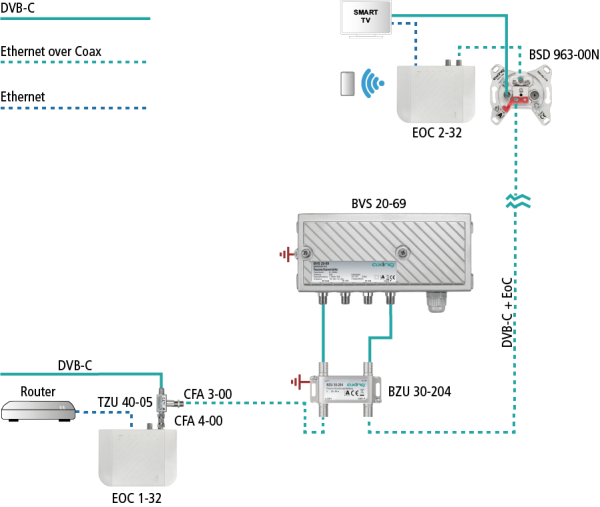

EoC signals 5 … 204 MHz can be routed passively around a broadband amplifier
Separates and recombines the frequency ranges 5 … 204 MHz and 258 … 1218 MHz

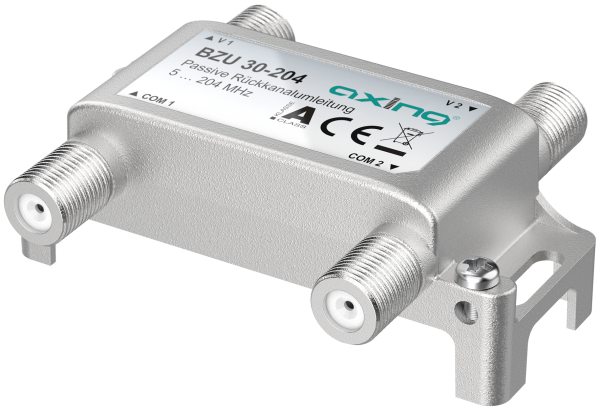

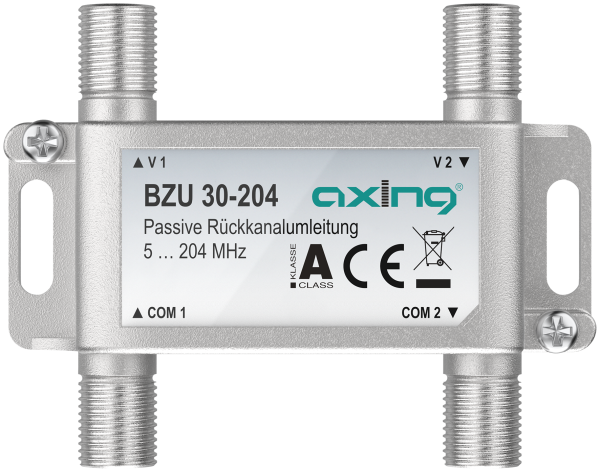

EOC Passive return channel bypass 5 … 204 MHz
$45.00 inc GST
EoC Filter to allow EoC data to bypass amplifiers.
In stock (can be backordered)
Shipping Information
| Shipping Weight | 0.1 kg |
|---|---|
| Packaging Size | 50 × 50 × 25 mm |
Specifications
| Screening factor acc. to EN 50083-2 | Class A |
|---|---|
| Frequency range | 5 … 1218 MHz @ COM1/2 | 258 … 1218 MHz @ V1/2 |
| Through loss | 2.0 dB |
| Isolation | ≥ 45 dB |
| Connectors | |
| Connector type | F-female |
| Return loss | ≥ 18 dB (–1.5 dB/oct.) |
| General | |
| Operating temperature range | −20 °C … +50 °C |
| Dimensions (W × H × D) appr. | 72 x 27 x 54 mm |
| Weight | 0.069 kg |
| IP code | IP54 |
